TD: machine-vision inspection for inline quality control

The TD family is DCM’s solution for automatic inline product inspection using machine vision. Designed to operate at high speed within the production process, it enables objective, consistent, and traceable inspection of 100% of units for shape (burgers, nuggets, tenders, etc.), eliminating the variability of manual visual checks and providing a real view of production behavior.

inspections / min
0

Maximum performance for burgers (patties)

inspections / min
0

High speed for other industrial formats

Objective inspection
0 %

Consistent quality and reduced waste

What it is designed for

  • Objective quality

    Ensures consistent, measurable checks on every product.

  • Fewer incidents

    Reduces claims, scrap, and rework on the line.

  • Performance visibility

    Enables analysis of real performance by product reference.

  • Reliable control without sacrificing speed

    Ensures repeatability and traceability while maintaining productivity.

Key advantages

01

Compact, robust design.

02

Ready for the food industry.

03

Easy integration into existing lines.

04

Compatible with different widths and configurations.

05

Product changeover from the HMI without complex mechanical adjustments.

06

Available models: TD26 and TD40.

07

Adaptable to different installation needs and line widths.

Product family

Vision System · Quality Control

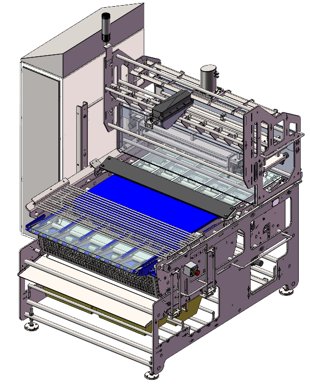

TD40 Inspection System
Automatic inspection system for burgers, nuggets, and tenders. It checks shape, thickness, and foreign objects with top and bottom vision at speeds of up to 6,000 inspections per minute.

Inspected products

Burgers
Nuggets
Tenders
Breast / Fillet

Technical drawings

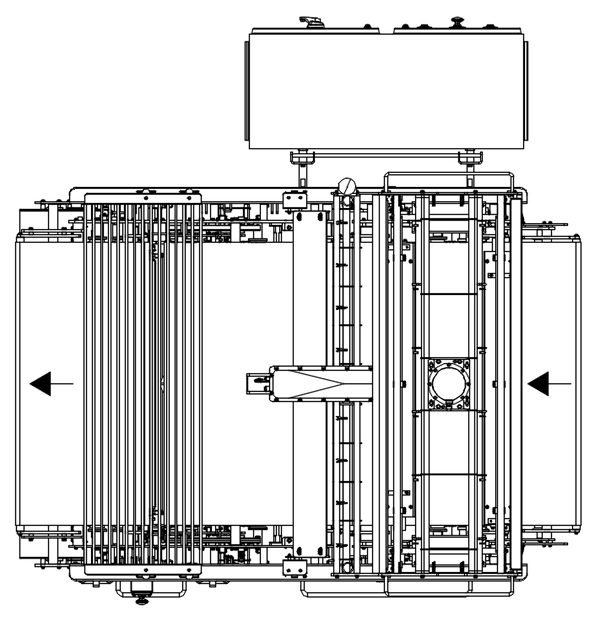

Plan view

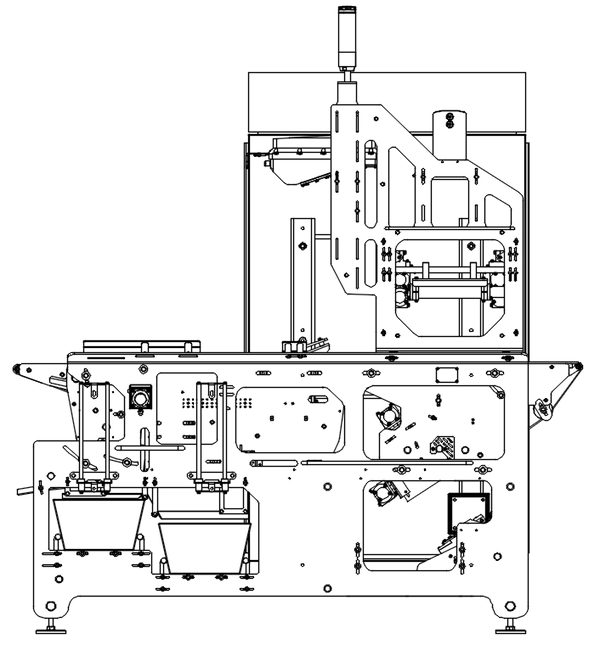

Side view
Speed
1.000 – 6.000
inspections / min
Overall length
2.400 mm
94,45 in
Widths available
TD26 - TD50
adaptable to your line
Power supply
480V / 60Hz
Electrical load
6 kW · 10 A FLA
Air supply
87 PSI
dry air · 31.5 l/min
IP protection
IP69K
Commissioning
8 hours
until operational

Vision System · Quality Control

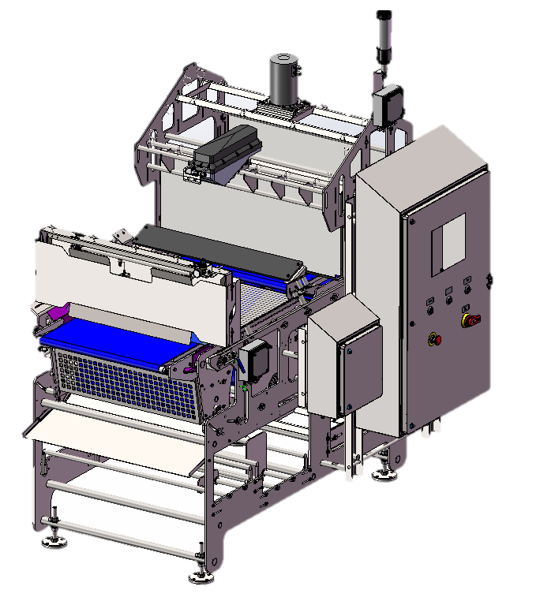

TD26 Inspection System
Automatic inspection system for burgers, nuggets, and tenders. It checks shape, thickness, and foreign objects with top and bottom vision at speeds of up to 6,000 inspections per minute.

Inspected products

Burgers
Nuggets
Tenders
Breast / Fillet

Shape

Contour inspection

Thickness

Profilometric control

Foreign objects

Top and bottom detection

1.000 – 6.000

inspections / min

Main Dimensions and Components

Main dimensions

Overall length

2.300 mm
90,55 in

Width

710 mm
28 in

Adjustable height

1.200 mm
42.24 in

Commissioning

8 horas
until operational

System components

Profilometer (thickness control)

Top camera

Bottom camera

Water misting unit (optional)

Edible reject

Inedible reject

HMI — control screen

Daily production and quality reports

Speed
1.000 – 6.000
inspections / min
Overall length
2.300 mm
90,55 in
Widths available
TD40 - TD50
adaptable to your line
Power supply
480V / 60Hz
6 KW · 10A FLA · SCCR 10KA
Air supply
87 PSI
dry air · 31.5 l/min
Water supply
6 l/min
nebulizador opcional
IP protection
IP69K
Data connection
2 × CAT6
Shielded Ethernet
